 The Trusted
Subframe System
for Builders Australia's #1 Decking System Get an Instant Quote

Build Decks Faster with Clickdeck, a Durable Frame & Surface System

See why Clickdeck is the trusted deck system for residential & commercial projects Australia wide

Natural Timber Decking on Clickdeck

28Profile, Pedestal Pro

Public Walkway

55Profile, Pedestal Pro

Custom High-Rise Curved Pool Decking

55Profile, 55mm Post Kit

Pool Decking – Around Curved Pools

55Profile, Pedestal Pro

Ultra Low Height – 30mm

28Profile

Over Metal Sheet Roofing

55Profile, Pedestal Pro

height

Height Adjustable
Deck Supports

shield

No Rot / No Rust /
No Termites.
Aluminium Frame

speed

70% Faster than
timber framing

build

Easy to Install

check_circle

Australian Engineered Council Approved

Clickdeck Built for Trade

- In house design, engineering and takeoff service.
- Australia wide coverage with local stockists.
Play with Sound
Play with Sound
Play with Sound

See why builders choose Clickdeck

Play with Sound
0 +
Builders

Choose Clickdeck

Clickdeck Built for Trade

- In house design, engineering and takeoff service.
- Australia wide coverage with local stockists.

Builder Essentials

Install Guide
Span Table
Connection Details

Compatible
with Any Surface

One System, Compatible with:
Clickdeck® +

Height Range:
From 28mm > 2400mm

Any Shape,
Angles, Curves, Ramps, Stairs

Build Over
Any Ground Type

Build Over:
-

See why builders choose Clickdeck

Play with Sound
0 +
Builders

Choose Clickdeck

Exclusive for Trade

Free Design Service

We’re here to make sure you win the project.


Submit your job plan and let us handle the rest, from free design plans and detailed takeoffs to coloured layouts, material lists, and full job support.

Our dedicated team will work with you every step of the way to ensure your project runs smoothly and successfully.

Deck Support Options

Height Range: From 28mm > 2400mm

Adjustable Pedestals

Height option from 10mm - 550mm

View Pedestal Pro

Aluminium Post Kits

55post
110post

55mm Aluminium Post Kit /
100x100mm Aluminium Post Kit

Alternative Support Options

Timber-2
Steel-post-2

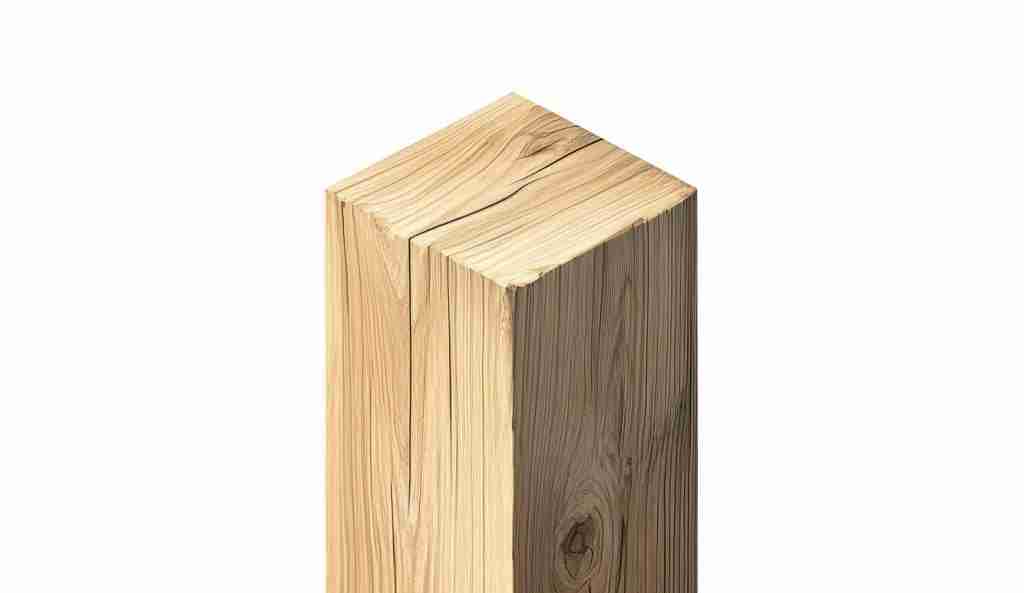

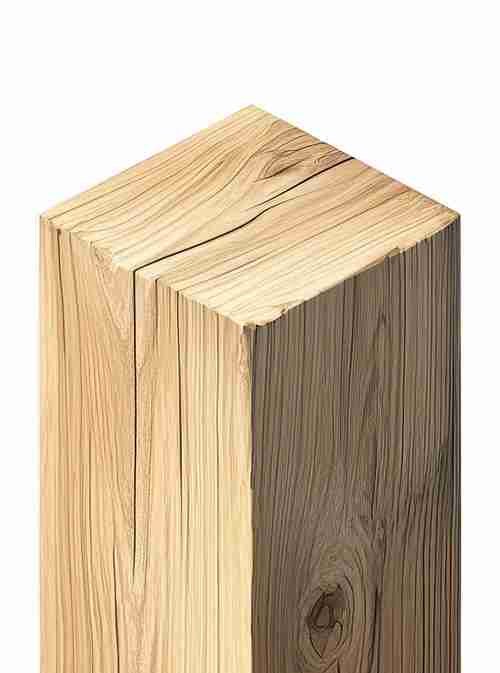

Timber Post /
Steel Post

Flexible Supply Options

Most Popular Option

Cut On Site

We supply aluminium joists and bearers
in standard stock lengths:
2.4m, 3.6m, 4.8m, 6m

YOU SIMPLY CUT ON SITE

- Maximum flexibility
- Extra material allowance included
- Includes a custom assembly plan
Customised on Request

Make a Kit

We cut all aluminium joists and bearers to size based on your plan drawings and deliver them ready to install.

WE CUT FOR YOU

- Additional costs apply
- Great for DIY setups
- Includes a custom assembly plan

Quick Span Table

*Continuous Span
PROFILE JOIST SPAN
(RECOMMENDED)		 BEARER SPAN
(RECOMMENDED)		 CANTILEVER
(MAX)
28 x 50700mm600mm200mm
55 x 551200mm1200mm250mm
110 x 501900mm1700mm400mm
150 x 502700 / 3000mm*2300mm650mm
200 x 503400 / 3900mm*2700mm900mm
← Swipe to see more →

Aluminium Profiles
(Joist / Bearers)

Profile Heights: 28mm to 200mm

28PROFILE

P28-3600
P28-4800
P28-6000

AVAILABLE IN:
3600mm | 4800mm | 6000mm

55PROFILE

P55-2400
P55-3600
P55-4800
P55-6000

AVAILABLE IN:
2400mm | 3600mm | 4800mm | 6000mm

110PROFILE

P110-3600
P110-4800
P110-6000

AVAILABLE IN:
3600mm | 4800mm | 6000mm

150PROFILE

P150-6000



AVAILABLE IN:
6000mm

200PROFILE

P200-6000



AVAILABLE IN:
6000mm

Flexible Supply Options

Popular

Cut On Site

We supply aluminium joists and bearers
in standard stock lengths: 2.4m, 3.6m, 4.8m, 6m.
On Request

Make a Kit

We cut all aluminium joists and bearers to size based on your plan drawings and deliver them ready to install.

Clickdeck Aluminium Subframe System

Quick Connection Details

Can You Afford to Not Use Clickdeck?

Less Components, Quicker Install & Delivered Direct to Your Job

Clickdeck

Warranty:
Clearance:
Certified:
Fire Resistance:
Molsture Proof

50 Years
2mm
Yes
100%
100%

Breakdown

Frame:
Components:
Pedestals:
Build Time:

$2992
$255.2
$356.4
1 Person: 4 hrs @ $100

$4003.60 Cost

Components: Corner Brackets : $123.2 | Hex Screws : $132

Timber

Warranty:
Clearance:
Certified:
Fire Resistance:
Molsture Proof

0 Years
400mm
No
0%
0%

Breakdown

Frame:
Components:
H4 Posts:
Build Time:

$1473.48
$905.72
$825.62
2 Persons: 12hrs @ $100

$5604.82 Cost

Components: Galvanised Collated Nails : $150 | Galvanised batten screws: $69.95 | 90×45 Joist Hangars : $75 | Joist Protection Tape : $422.52 | M10 Galvanised Nut/ Bolts : $146.85 | Bitumen Paint for posts : $41.40

Steel

Warranty:
Clearance:
Certified:
Fire Resistance:
Molsture Proof

0 Years
400mm
No
100%
100%

Breakdown

Frame:
Components:
SHS Posts:
Build Time:

$3682.80
$440.15
$420
2 Persons: 16hrs @ $100

$8142.95 Cost

Components: Brackets and Clips : $196.55 | Hex Screws: 79.80 | Rust protectant: $45 | M12 150 Nut / Bolts : $118.80

*Deck cost comparison based on a 6m × 6m size. Pricing accurate as of 27/04/25 from Bunnings online.

4x Faster Than a Timber Subframe

Save massive labour costs and installation time with the Clickdeck system.

Enjoy more profit, faster turnarounds, and more time to take on your next project.
4×

Lightweight & Strong
Aluminium Frame

Clickdeck’s aluminium subframe is engineered for maximum strength without the weight, making transport, handling, and installation faster and easier on site.

No Pre-drilling Needed
(All Tek screws)

Our system is designed for speed — all fixings use Tek screws, eliminating pre-drilling and saving you valuable installation time.

Compatible with All
Timber / Composite

Supports all major brands on the market, whether you choose natural timber or composite boards, giving you complete flexibility in material choice.

Australia’s Leading Builders on Clickdeck

See What The Industry Leading Businesses Have To Say
Play with Sound
Play with Sound
Play with Sound

Projects of the Month

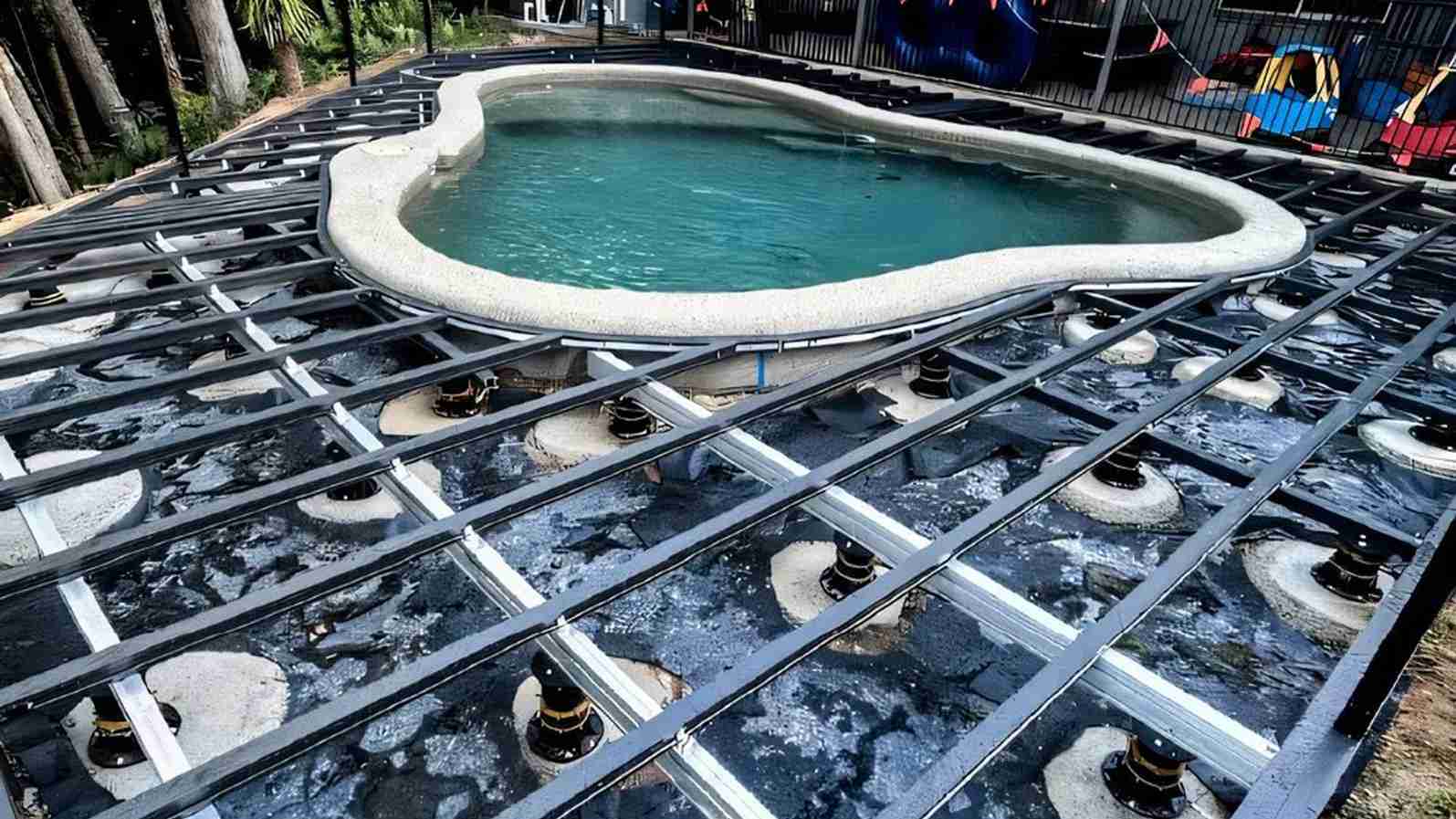

Premium Residential Pool Deck

Clickdeck supplied a fully integrated, precision-engineered aluminium subframe system for this premium residential project, supporting a large-scale poolside entertaining area.
Before After

The project included design collaboration, structural framing, and on-site delivery using marine-grade aluminium — chosen for its corrosion resistance, long-term durability, and clean architectural finish. The Clickdeck system provided a fast, precise installation platform for composite decking in a coastal environment, offering both strength and elegance for high-end outdoor living.

Custom-Shaped & Curved Poolside Deck

Clickdeck delivered a custom aluminium subframe solution for this uniquely curved pool deck, paired with Luxdeck composite decking for a modern, low-maintenance finish.
Before After

The build featured a precision-framed curved perimeter to follow the organic shape of the spa, showcasing Clickdeck’s ability to accommodate custom and complex layouts. The result is a durable, visually seamless outdoor area suitable for commercial or wellness environments, offering structural strength, corrosion resistance, and long-term performance.
Instant Quote

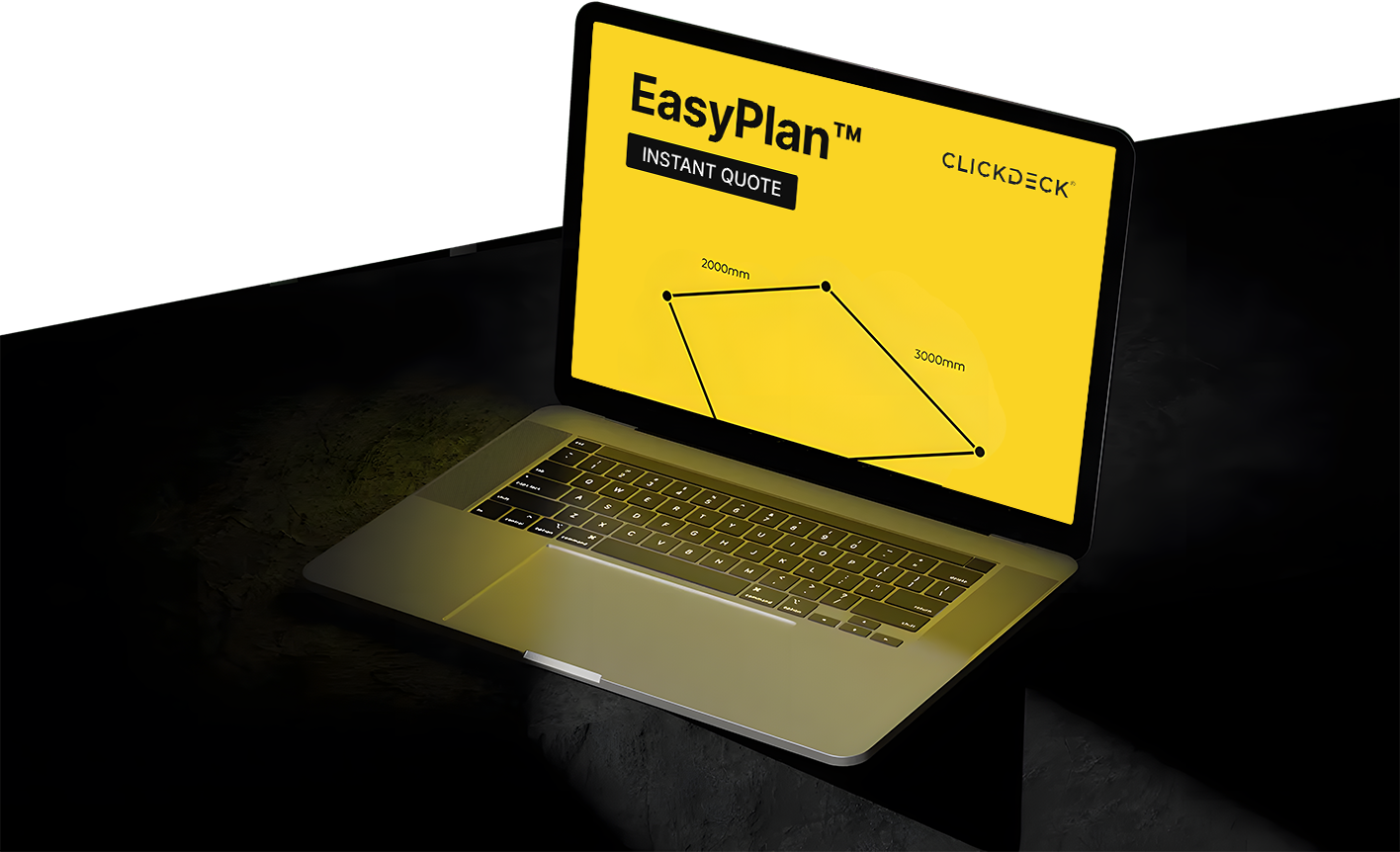

EasyPlan™ Deck Designer

Design and price your deck instantly with EasyPlan™ — our smart deck builder with real-time pricing, custom shapes, and full material breakdowns in just a few clicks.
Start with EasyPlan™
Free Design Service

Design & Pricing Enquiry

Have questions or need help planning your deck? Send us your measurements, ideas or enquiry and our team will provide design support, product advice and pricing guidance at no extra cost.
Get Free Design Plan
